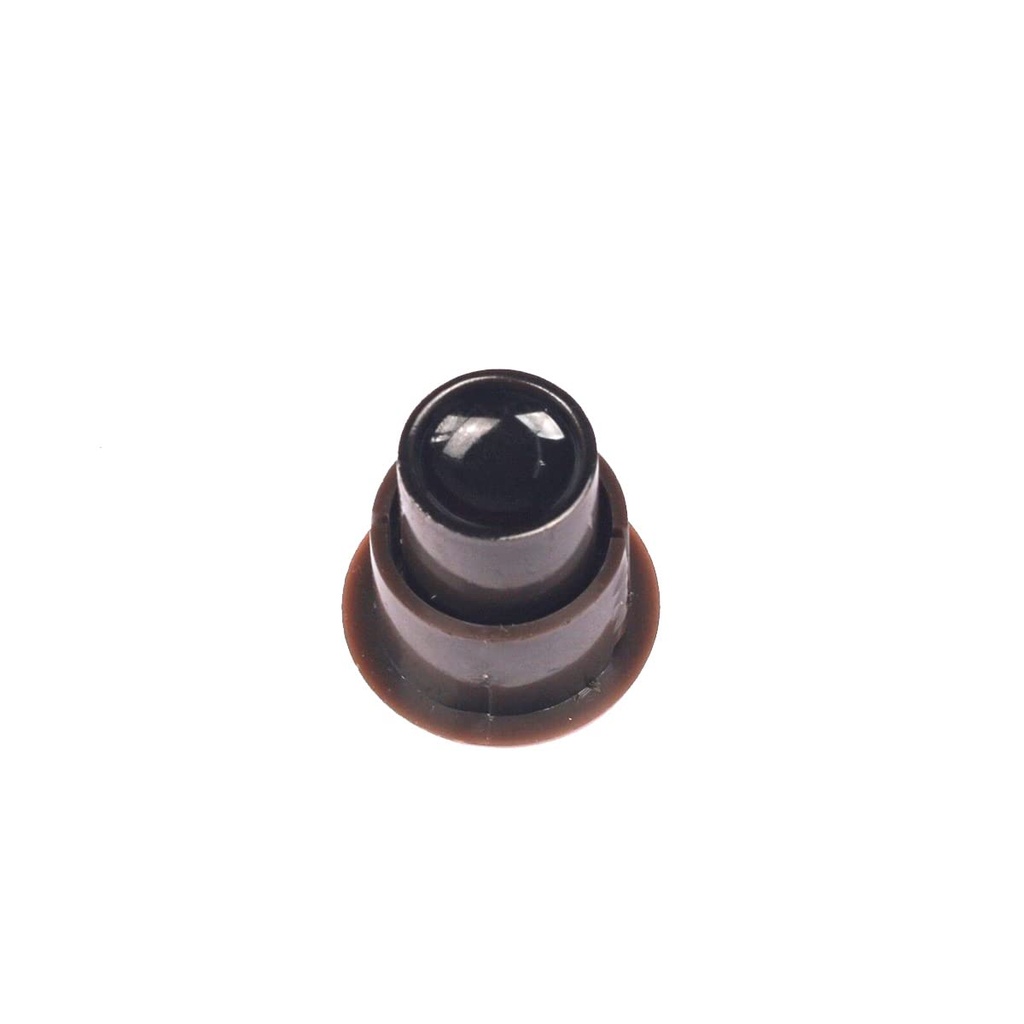

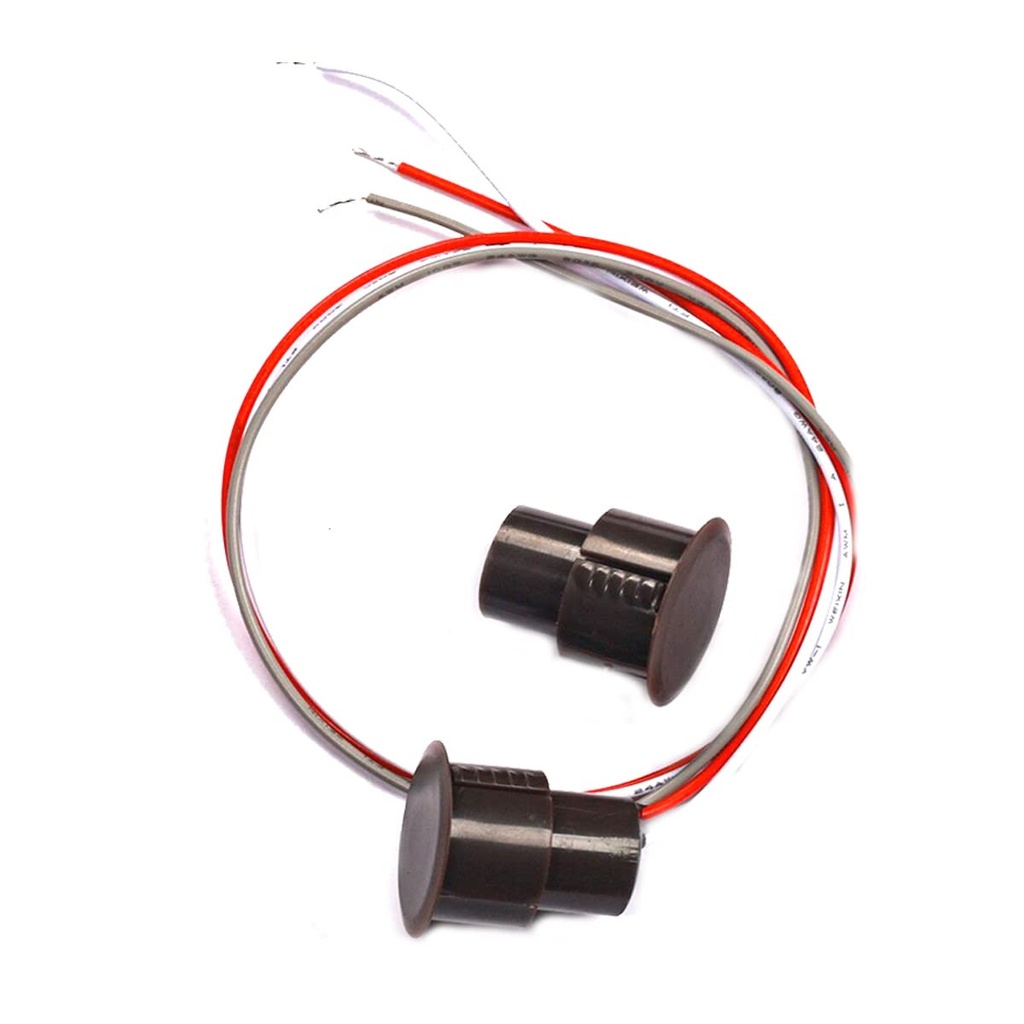

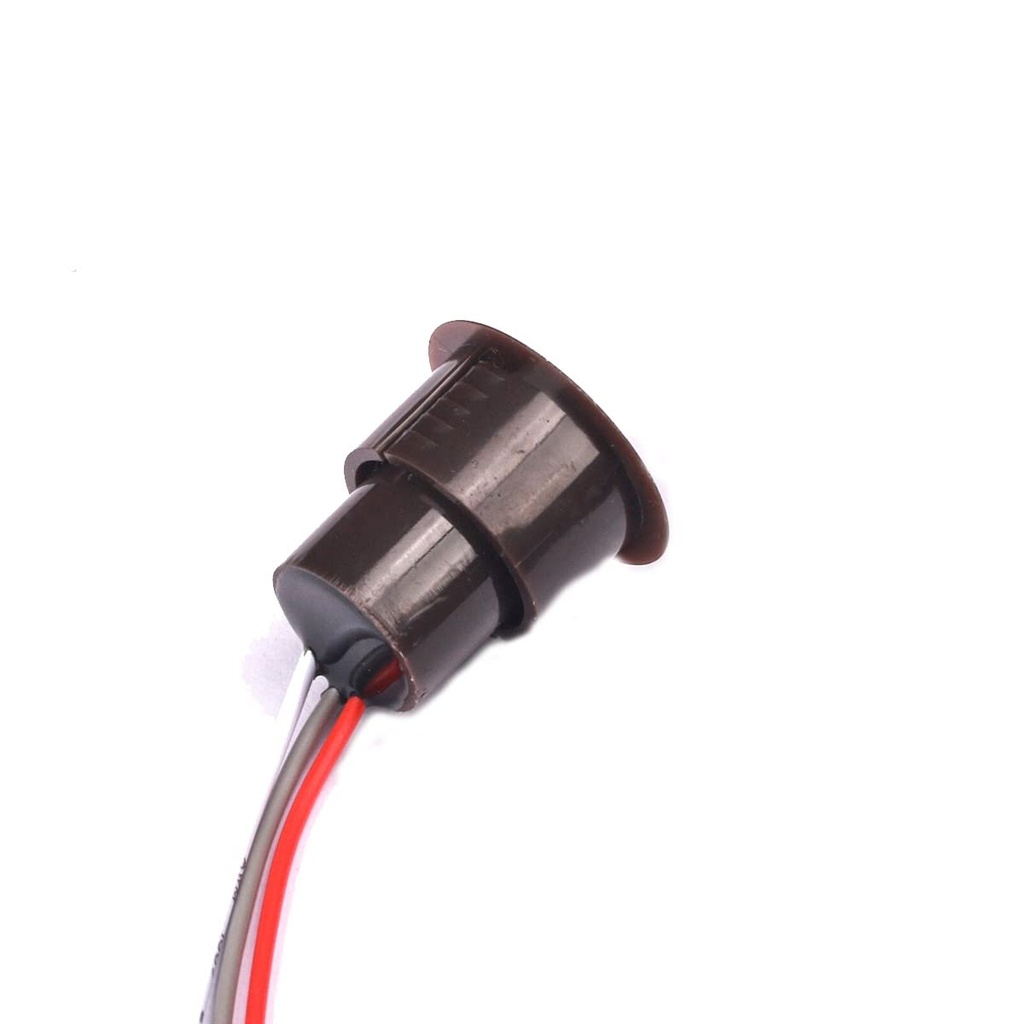

RC-36 NC/NO Recessed Wired Security Window Door Contact Sensor Brown Alarm Magnetic Reed Switch 5 Sets
10 sold in last 24 hours
- 【Product Name】: RC-36 Magnetic Door Switch
- 【Product parameters】: Rated voltage: 100V; Contact capacity: 500(mA) (maximum switching current), rated power: 10W (maximum switching power); Contact type: NC/NO/COM, trigger range: 15-25mm . Free to use normally open or normally closed, cable: White for common; Red for NO; Gray for NC.
- 【Application】: RC-36 NC/NO Magnetic Door Switch Magnetic door contact reed switch, suitable for door alarm sensor, siren, relay, LED switch, GPS low voltage equipment, etc., effective anti-theft.
- 【Product Size】: Overall Size: 22.8 x 23.2 mm / 0.89" x 0.91" (H*D) Cable Length: 250mm/9.8",Cable Length(Each) : 34cm/ 13.4"
- 【Package Contents】: 5 Sets of xRC-36 NC/NO Magnetic Door Switches, Here Comes Our 90-Day Money Back Risk-Free Purchase Guarantee
Tags |
Estimated shipping
Select a product to estimate shipping.RC-36 Door Magnetic Reed Switch
The reed switch is an electrical switch operated by an applied magnetic field.
Magnetic Door Switch Magnetic door contact reed switch, suitable for door alarm sensor, siren, relay, LED switch, GPS low voltage equipment, etc., effective anti-theft.
Designed for use with alarm systems. Great for use in family and factory window, door. etc.
Material: ABS (Housing)
Working Voltage: DC100V Max.Actuation Distance: 10mm
Note: Door magnetic induction can only provide a switch signal, which can not directly load the power, nor directly connect the lamp!
Product Dimensions
0.91 x 0.9 x 0.91 inches; 5.29 ounces
| Main Specification | |
|---|---|
| Abmessungen L x W x H | 0.91 X 0.9 X 0.91 Inches |
| Marke | Sopepoyie |
| Technical Details | |
| Material | Acrylonitrile Butadiene Styrene |
| Others | |
| Produkttyp | Electronic Sensor |
