uxcell Thread Milling Taps, 3/8-16 UNC High Speed Steel (HSS) 3 Straight Flutes Machine Screw Thread Threading Tap, 5" Length (Extra Long)
10 sold in last 24 hours

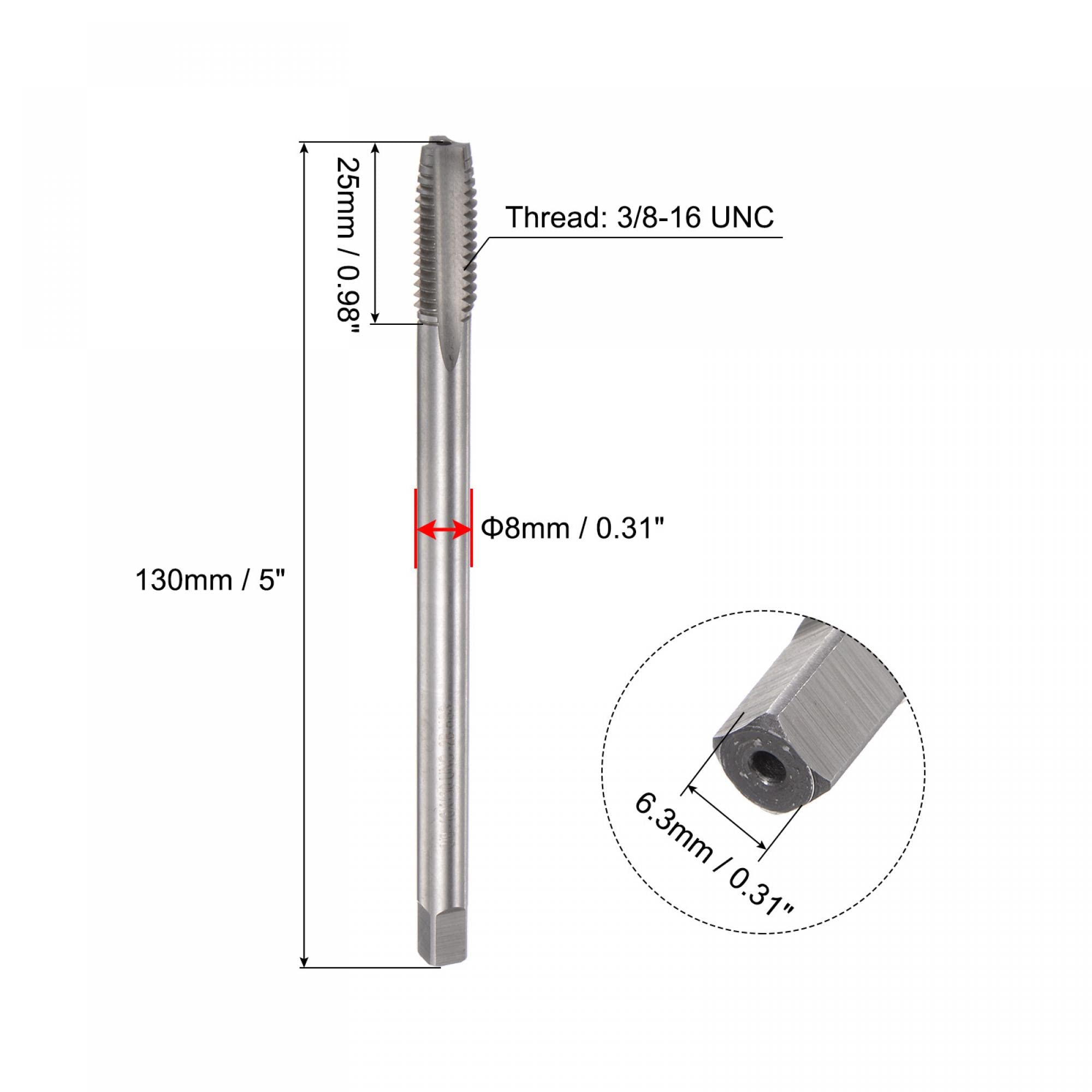

- Tap Size: Thread size: 3/8-16 UNC; total length: 130mm / 5" (approx.); accuracy class: H2. Straight flute design, downward chip removal. Right hand thread cutting, clear threads, fast tapping with accuracy.

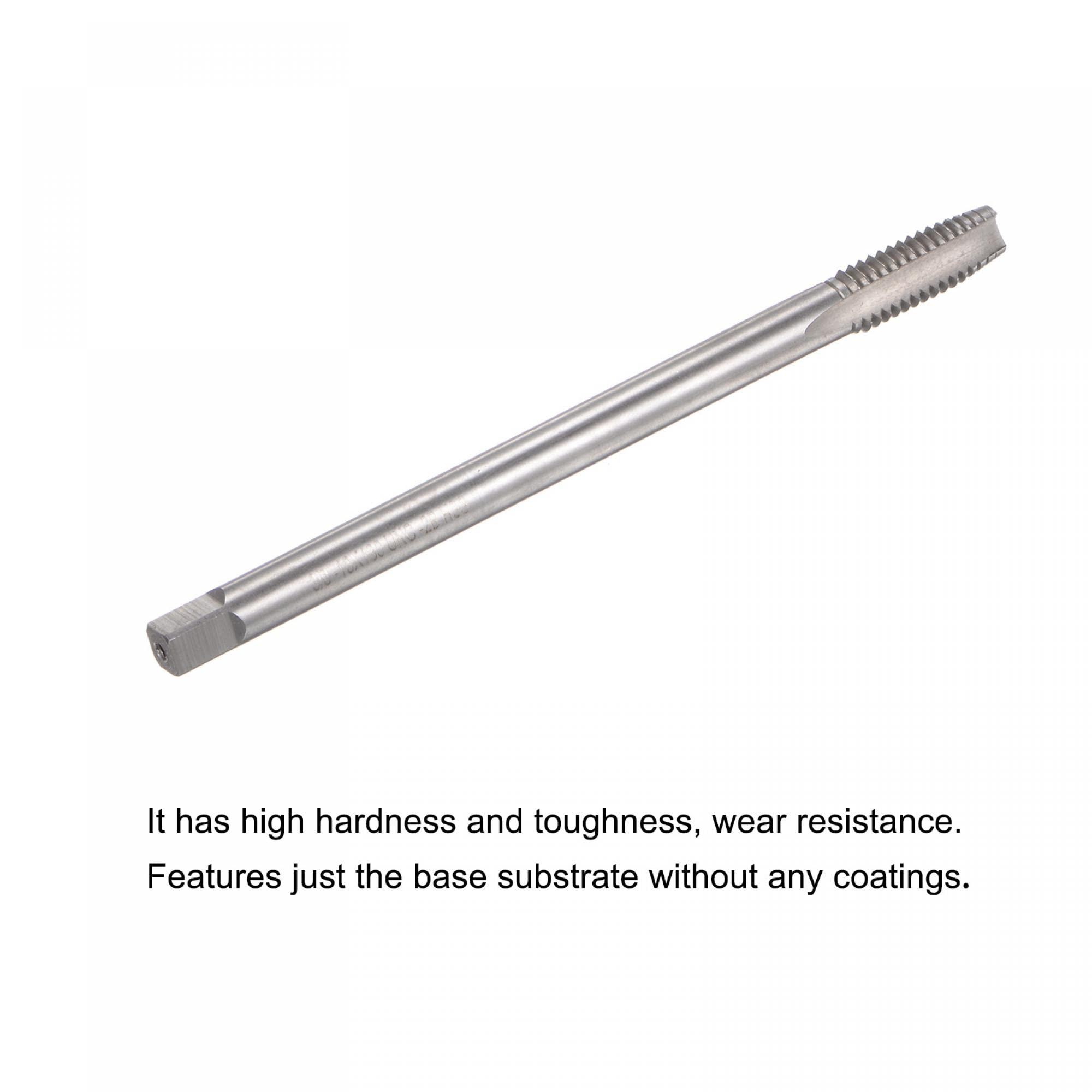

- High Speed Steel: High speed steel tool has high hardness and toughness, wear resistance, heat resistance. Features just the base substrate without any coatings, good for general purpose thread tapping.
- Applications: Suitable for processing through holes or shallow blind holes . Used for drilling and tapping aluminum, stainless steel, copper, hard plastics, etc.. Use with tapping oil to get higher quality threads and more durable taps.
- Easy to Use: Used on drilling machines, tapping machines, CNC and milling machines. Recommended feed rate: general steel: 6-15m/min; harder steel: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min.
- Tips: Machine taps are suggested to be used with tap collets with overload protection. Hand use or electric drills use is not recommended. Please add coolant when tapping and apply anti-rust oil for maintenance after use to prolong the service life.
Tags |
Estimated shipping
Select a product to estimate shipping.Information
Taps can be divided into straight flute thread taps, spiral flute thread taps, spiral point thread taps and thread forming taps. They are also divided into hand taps and machine taps according to the usage.
Hand taps are operated by tap wrenches. Machine taps are suggested to be used with tap collets with overload protection. Recommended feed rate: General steel: 6-15m/min; harder steel: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min.
Extra Long Thread Taps
Straight Flute Tap
Provides rapid downward chip removal to achieve efficient thread cutting, suitable for processing through holes or shallow holes.
6542 (M2) High Speed Steel
6542 high-speed steel taps offer high hardness, good toughness, wear resistance, and excellent cutting performance.
Uncoated Taps
Feature just the base substrate without any additional coatings, great for a wide range of applications.
Machine Taps
Clear threads without burrs
Used with tapping machines, drilling machines, milling machines, CNC.
Drill the holes with a twist drill bit first, then tap with a thread tap.
The tapping angle should be 90 degrees vertical and stable.
Wide Applications
Thread taps create new threads or re-thread damaged or jammed threads. Widely used for most metals, iron plate, copper, zinc, alloy steel, abrasive steel, A3 steel, stainless steel, etc..
Add proper tapping oil for higher quality internal threads and more durable taps. The tapping depth should not exceed 1.5 times the diameter of the tap (for example, the diameter M5x0.8 is about 5mm, and the depth should not exceed 7.5mm.)
Tips
Hand use or electric drill use is easy to cause breakage to the tap, so it is not recommended. Cutting oil is lubrication, cooling and anti-sticking. Be sure to select the appropriate cutting oil for complex tapping process and apply anti-rust oil for maintenance after use.
Control speed according to material hardness. The higher the hardness, the slower the speed. Fast speed with small torque; slow speed with high torque. The force must be uniform in tapping operations.
Product details
| Main Specification | |
|---|---|
| Hersteller | uxcell |
| Marke | uxcell |
| Menge des Pakets | 1 |
| Anzahl der Stücke | 1 |
| Material | High Speed Steel |
| Größe | 3/8-16 UNC x 5" |
| Stil | Straight Flutes |
| Positionsgewicht | 2,08 Unzen |
| Product information | |
| Abmessungen des Pakets | 5.55 x 3.94 x 0.67 inches |
| Nummer des Modells | a22051600ux0142 |
| Technical Details | |
| Teilenummer | a22051600ux0142 |
| Ende | Uncoated |
| Usage | Machine Use |
| Others | |
| Datum der ersten Verfügbarkeit | 2022 or July 16 |
| Produkttyp | Thread Milling Taps |
