250PCS 10 Sizes Metric External E-Clip Retaining Ring Assortment Kit
11 sold in last 24 hours
- This kit includes total 250 external E-type retaining rings with 10 universal shaft diameters: 1.5mm, 2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 25pcs for every specification. Abundant mini-size E-clips eliminate repeated separate purchases for small machinery, electronics and model repair
- Unique concave E-bow design maintains stable spring clamping force after installation. Radially snap into shaft grooves to firmly fix rotating components, effectively avoid loose displacement caused by high-speed rotation and continuous vibration impact

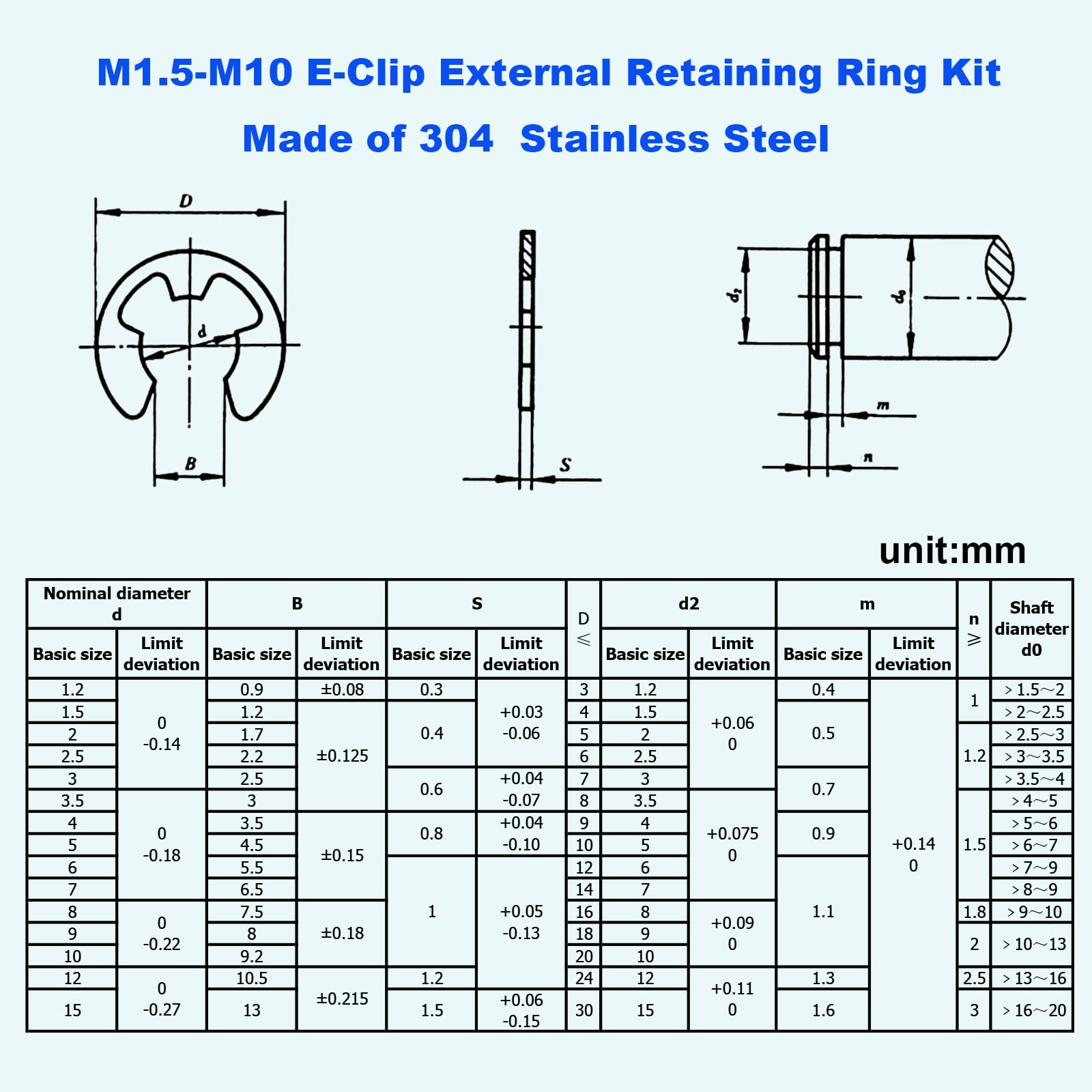

- Standard metric E-circlip dimensions match all standard small shaft grooves. No need for dedicated circlip pliers, you can press the E-clip into grooves directly from the side, ideal for narrow, compact assembly spaces with limited operation room
- All products are made of 304 Stainless steel;304stainless steel have good chemical resistance and may be mildly magnetic.

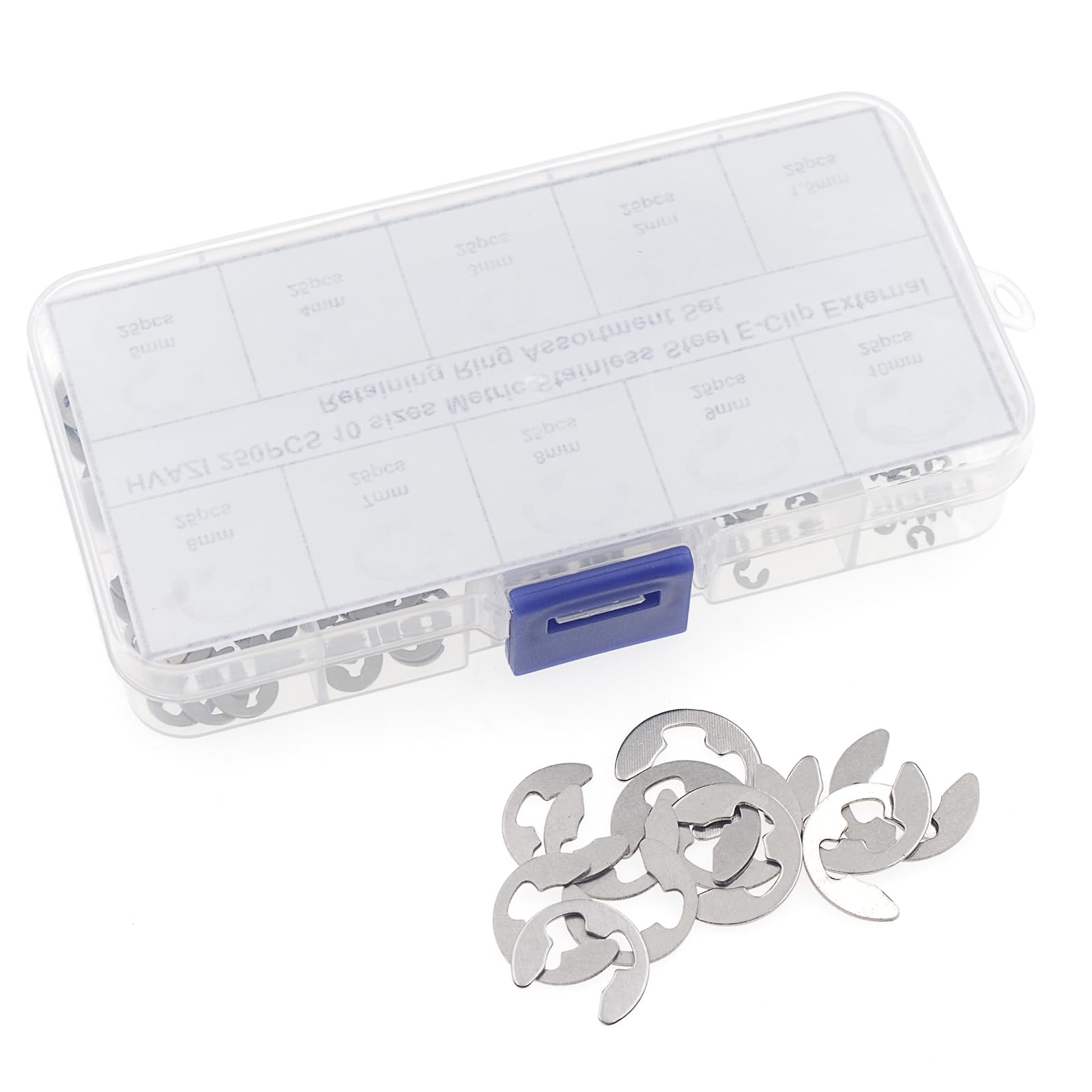

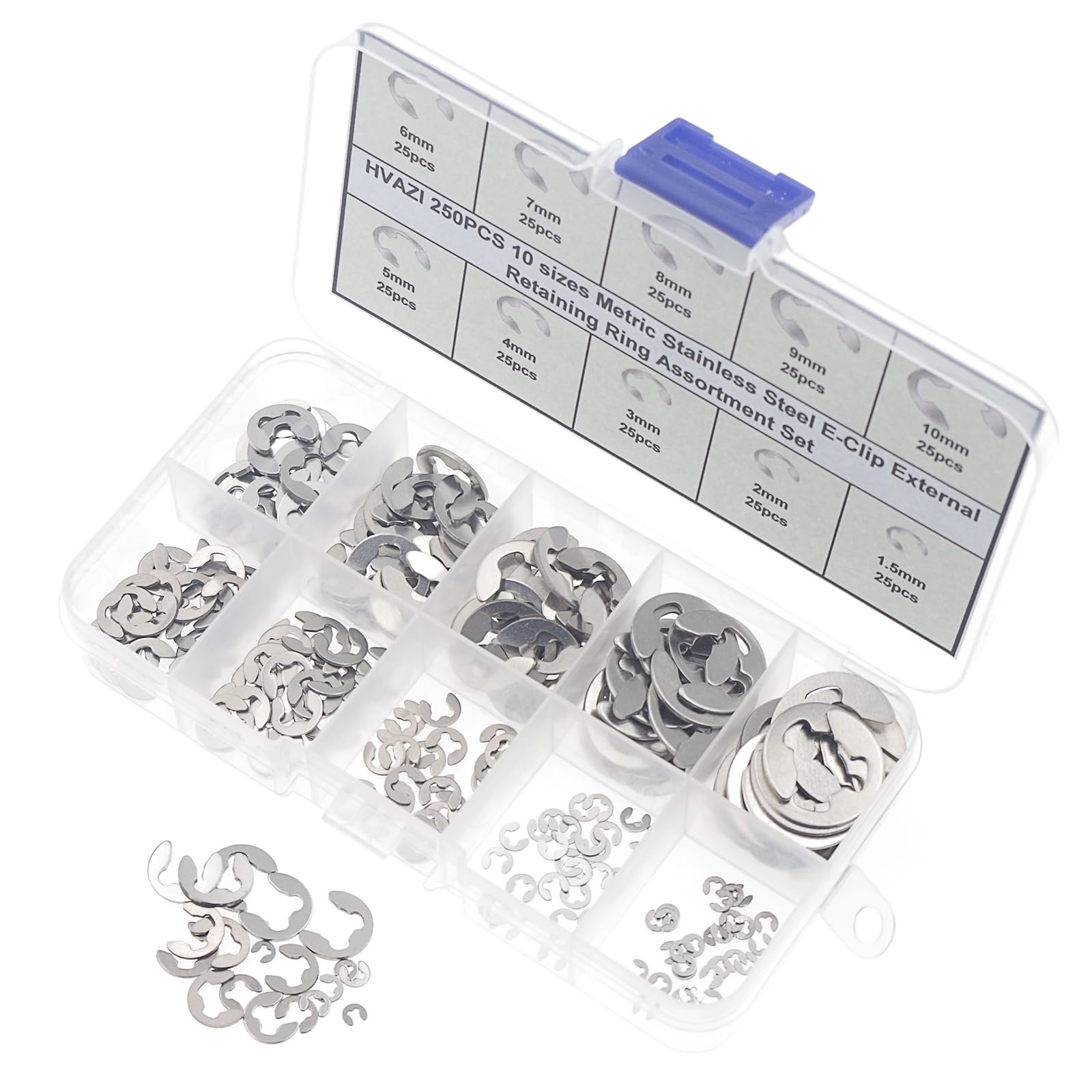

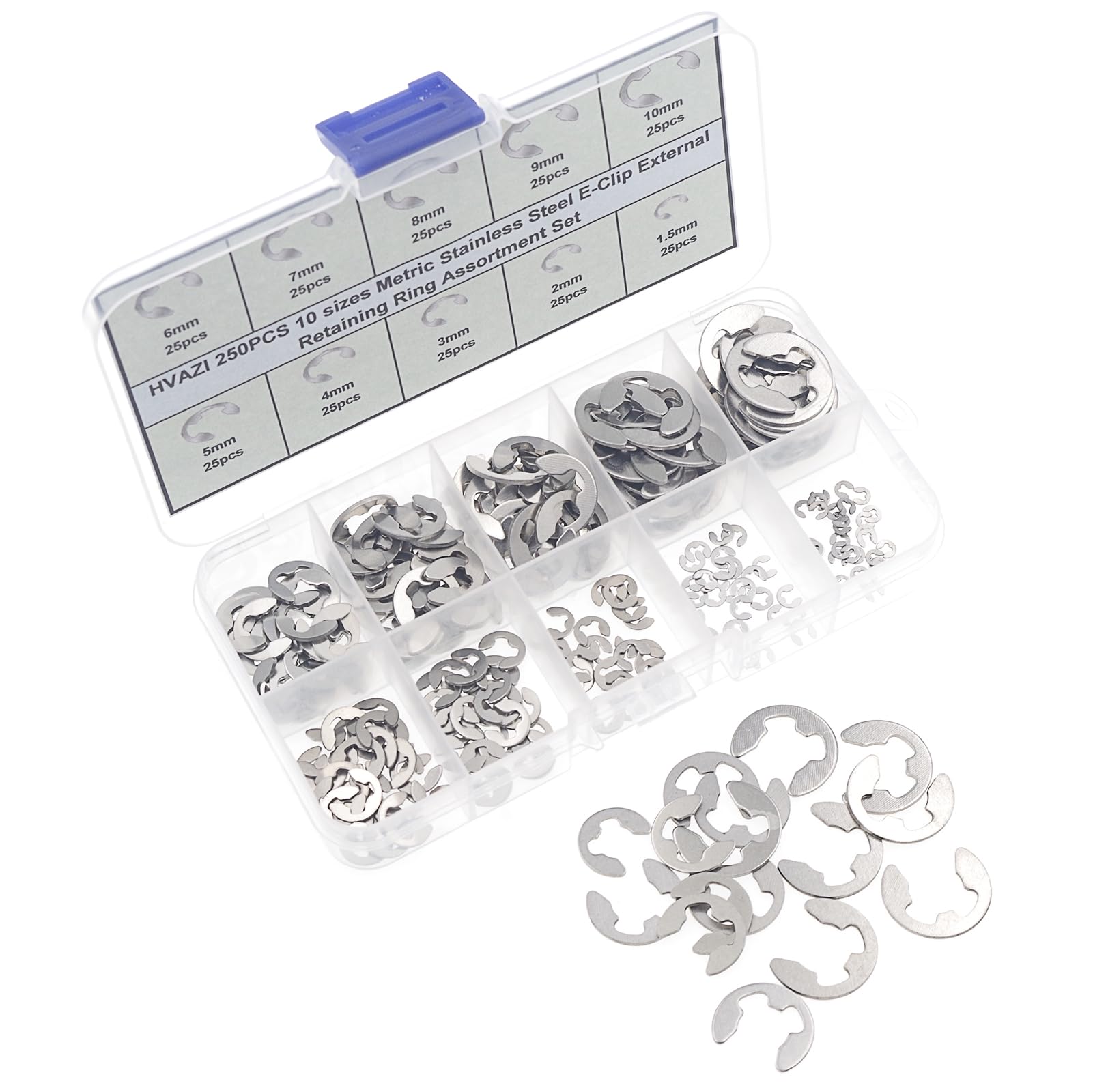

- Comes with a sturdy split transparent plastic storage case, each shaft size E-clip stored in independent compartment for quick identification. Compact lightweight design easy to carry to repair shop, lab and home DIY mechanical project
Estimated shipping
Select a product to estimate shipping.Product description:

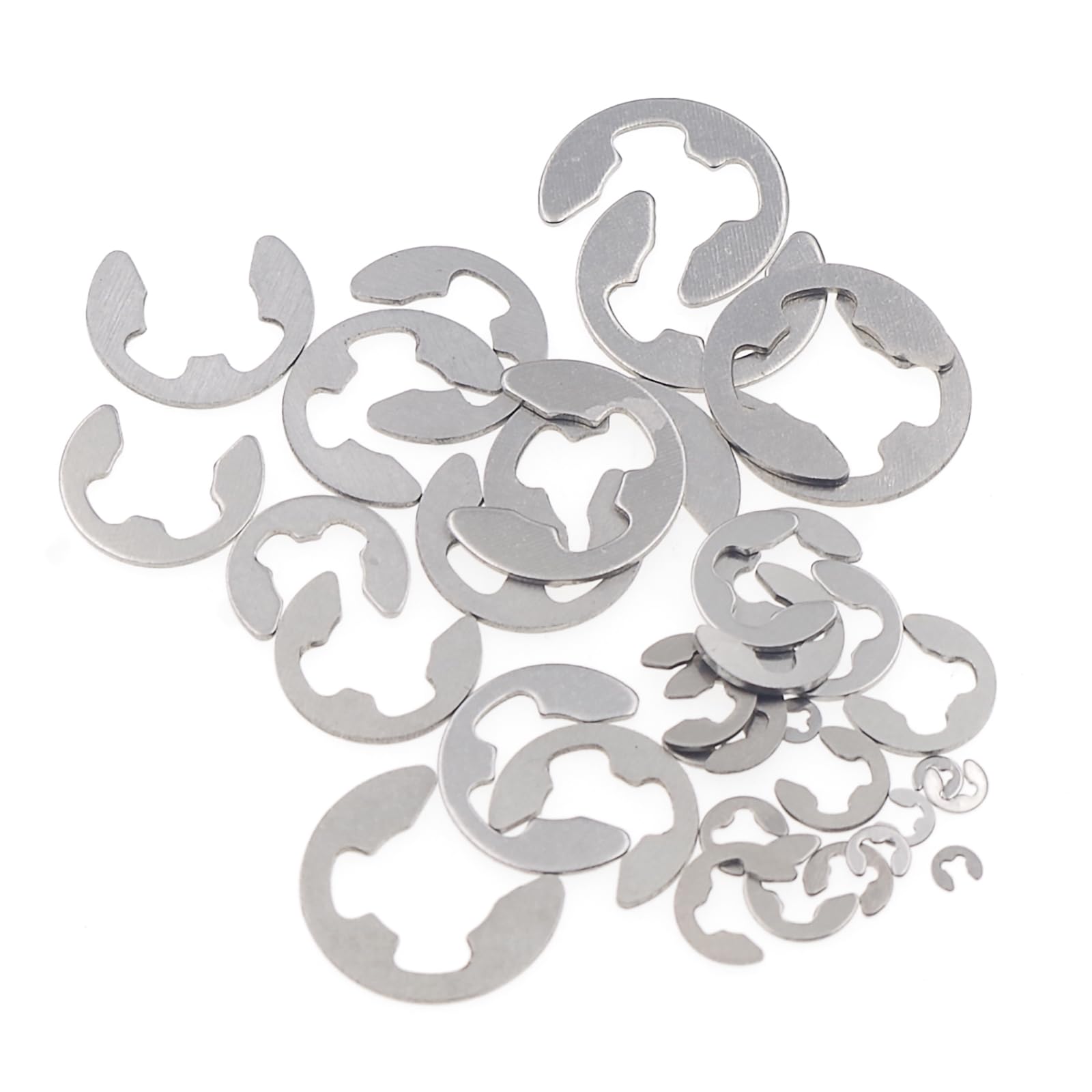

Also known as bowed E-style rings, these have a concave design that provides spring-like retention for a tight hold.
Package include:

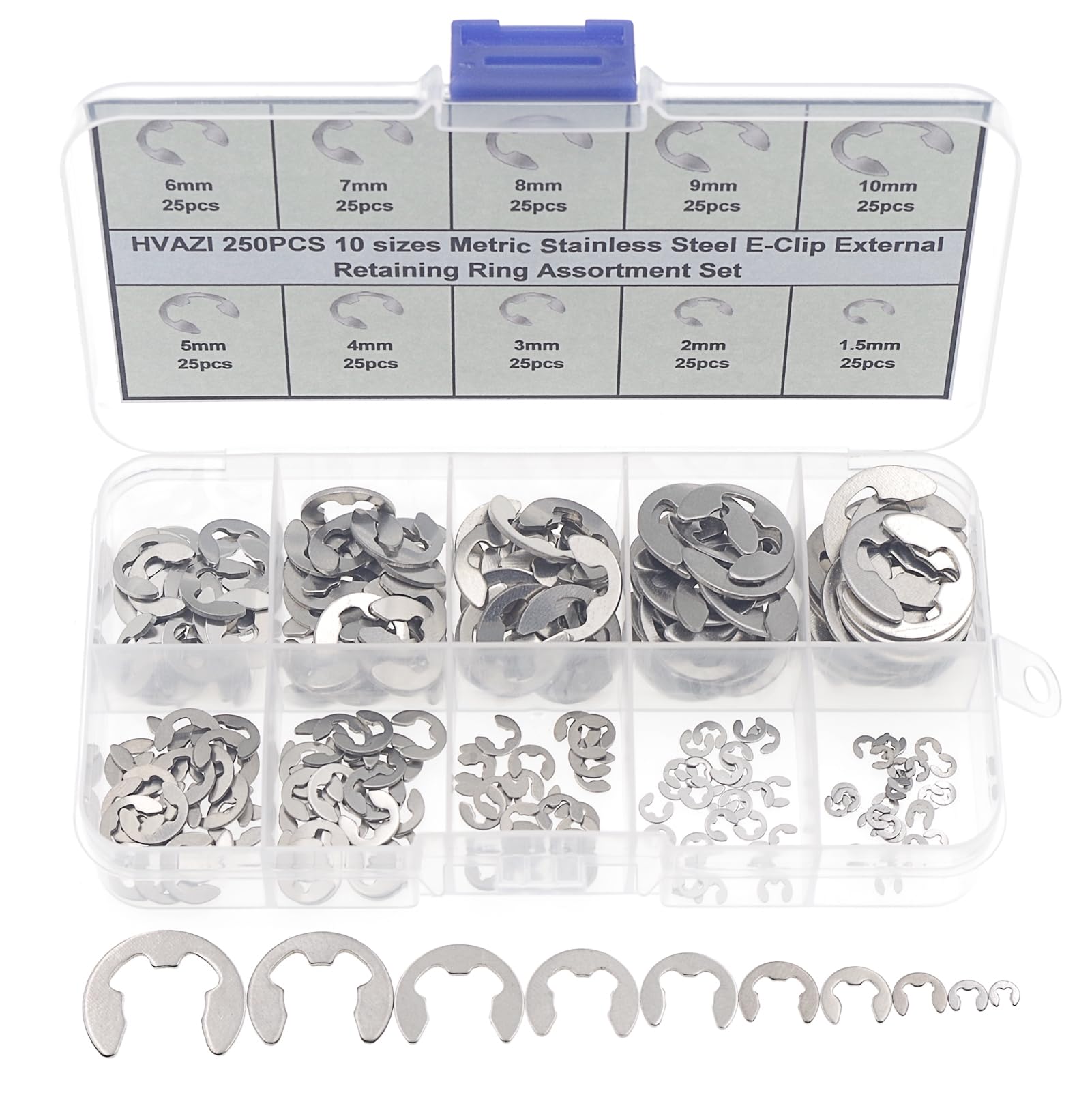

250pcs 10 Sizes Metric External Retaining Ring E-Clip Retaining Ring Circlip Assortment Kit;Come with the plastic box:

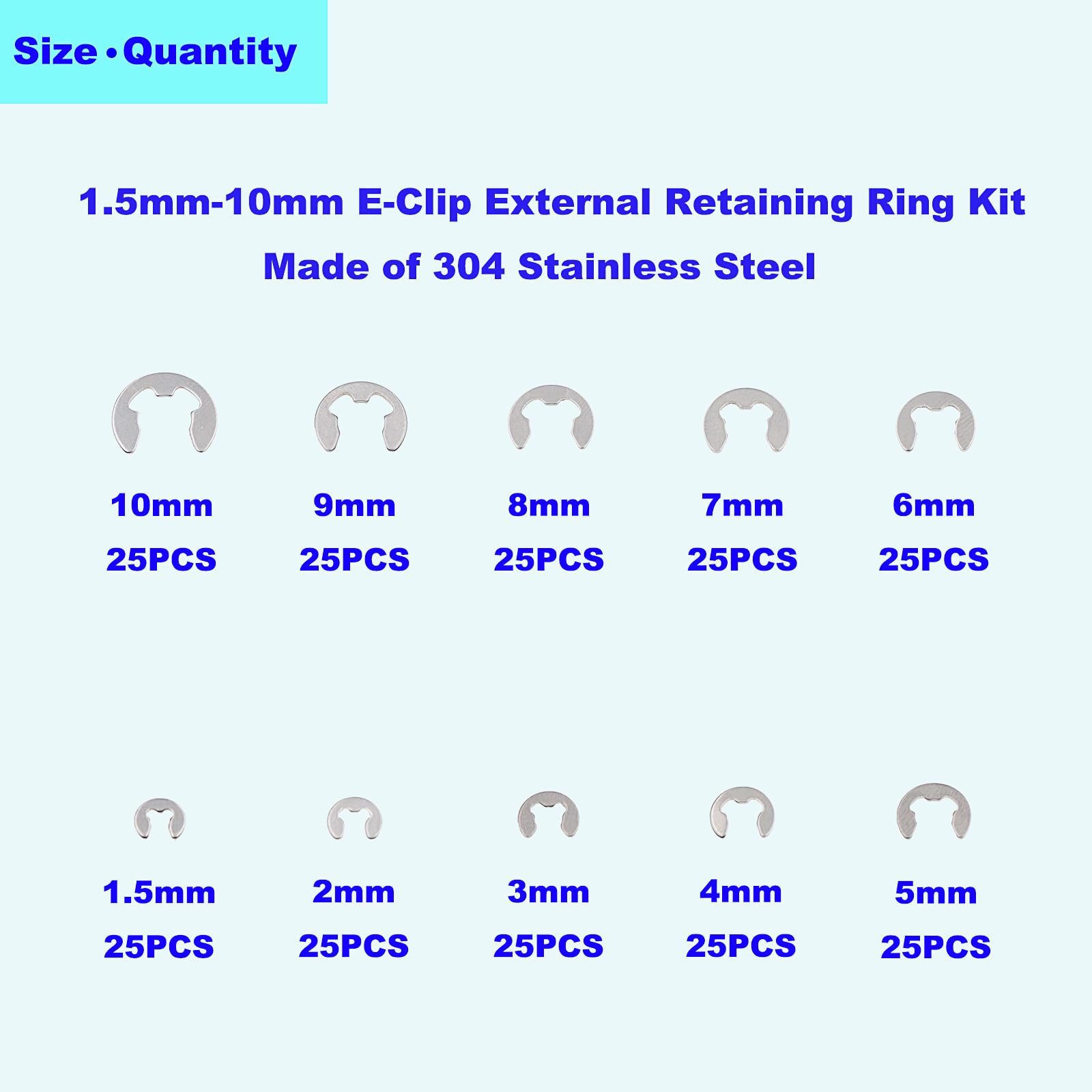

List(Type,Nominal Diameter,Quantity):
External Retaining Ring 1.5mm 25pcs;
External Retaining Ring 2.0mm 25pcs;
External Retaining Ring 3.0mm 25pcs;
External Retaining Ring 4.0mm 25pcs;
External Retaining Ring 5.0mm 25pcs;
External Retaining Ring 6.0mm 25pcs;
External Retaining Ring 7.0mm 25pcs;
External Retaining Ring 8.0mm 25pcs;
External Retaining Ring 9.0mm 25pcs;
External Retaining Ring 10.0mm 25pcs;
Packing contents:
HVAZI 250PCS Metric External Retaining Ring E-Clip Circlip C Clip Assortment kit Packed in a plastic box
| Main Specification | |
|---|---|
| Griffmaterial | Edelstahl or Kunststoff or Stahl or rostfrei |
| Hersteller | HVAZI |
| Spezifische Verwendungen für Produkte | E-Clip |
| Marke | HVAZI |
| UPC | 701988851720 |
| Material | Edelstahl |
| Farbe | Silber |
| Positionsgewicht | 0,13 kg |
| Product information | |
| Set Name | 250PCS M1.5-M10 Stainless Steel E-Clip Snap Ring Set |
| Technical Details | |
| Item Weight | 0.13 Kilograms |
| Nummer des Herstellers | BXGEXDQ250P |
| Materialtyp | Edelstahl |
| Item details | |
| Modellnummer | BXGEXDQ250P |
| Others | |
| Produkttyp | External Retaining Rings |
| Item Highlight | 304 Stainless Steel E Circlip Snap Rings for 1.5mm-10mm Shafts with Storage Box |
