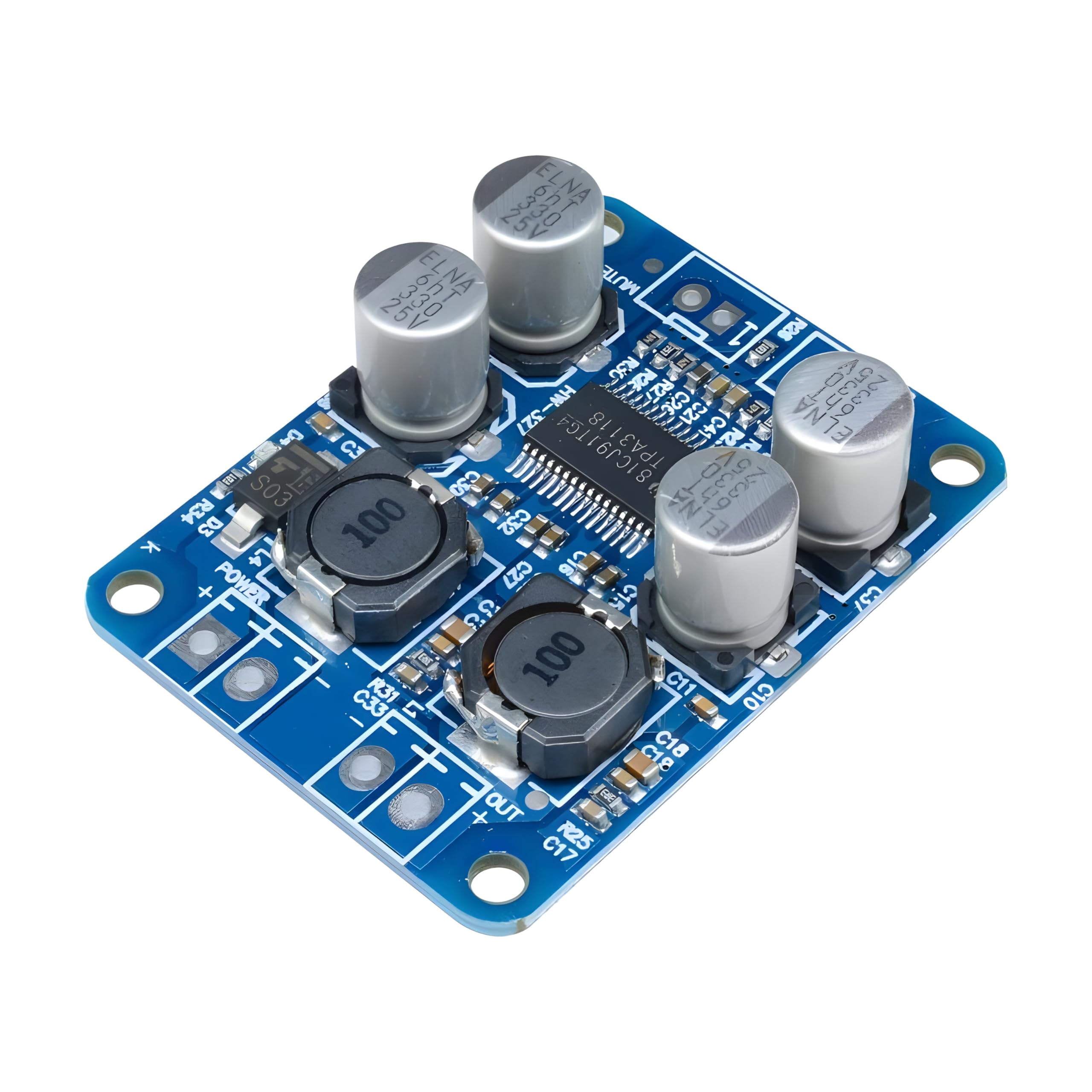

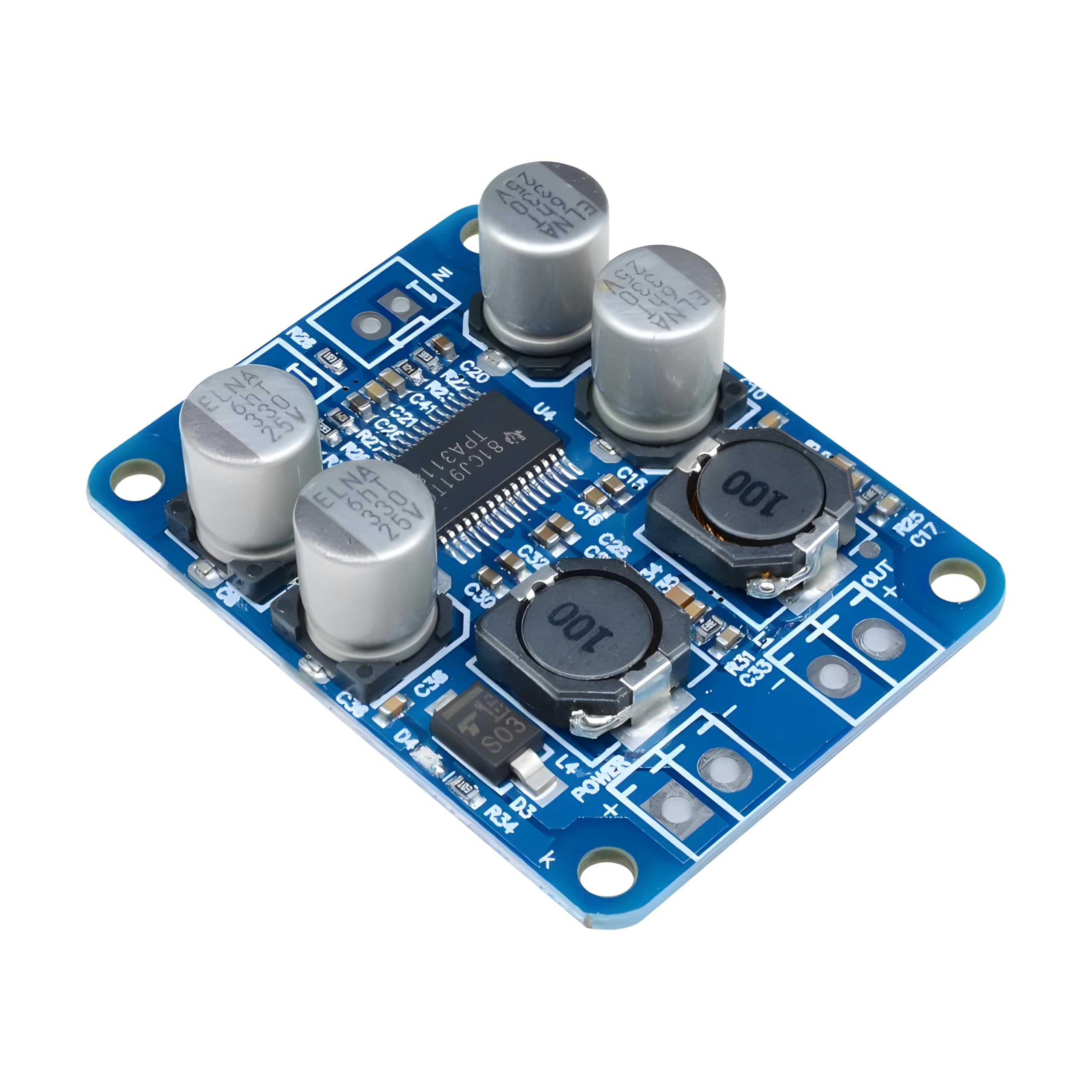

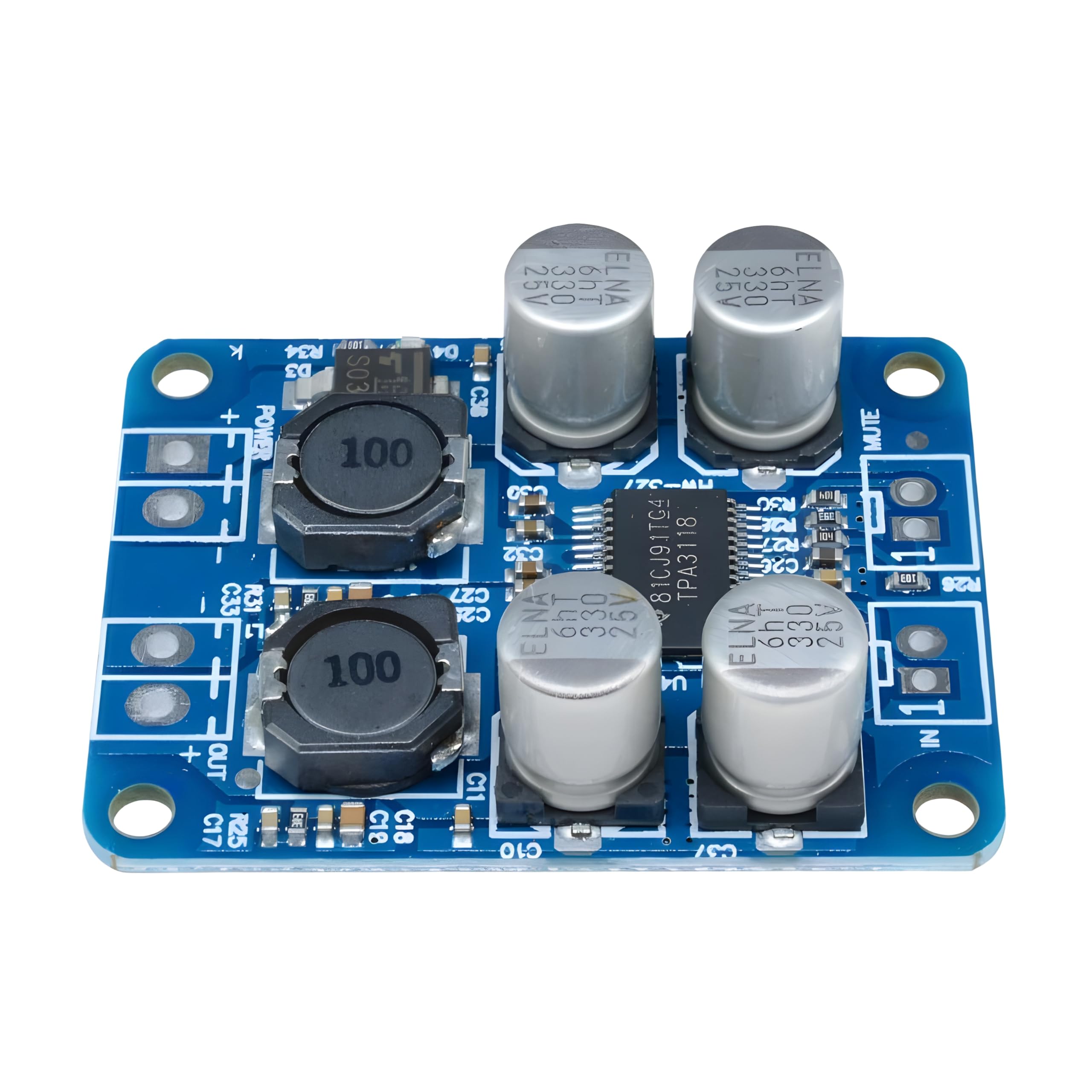

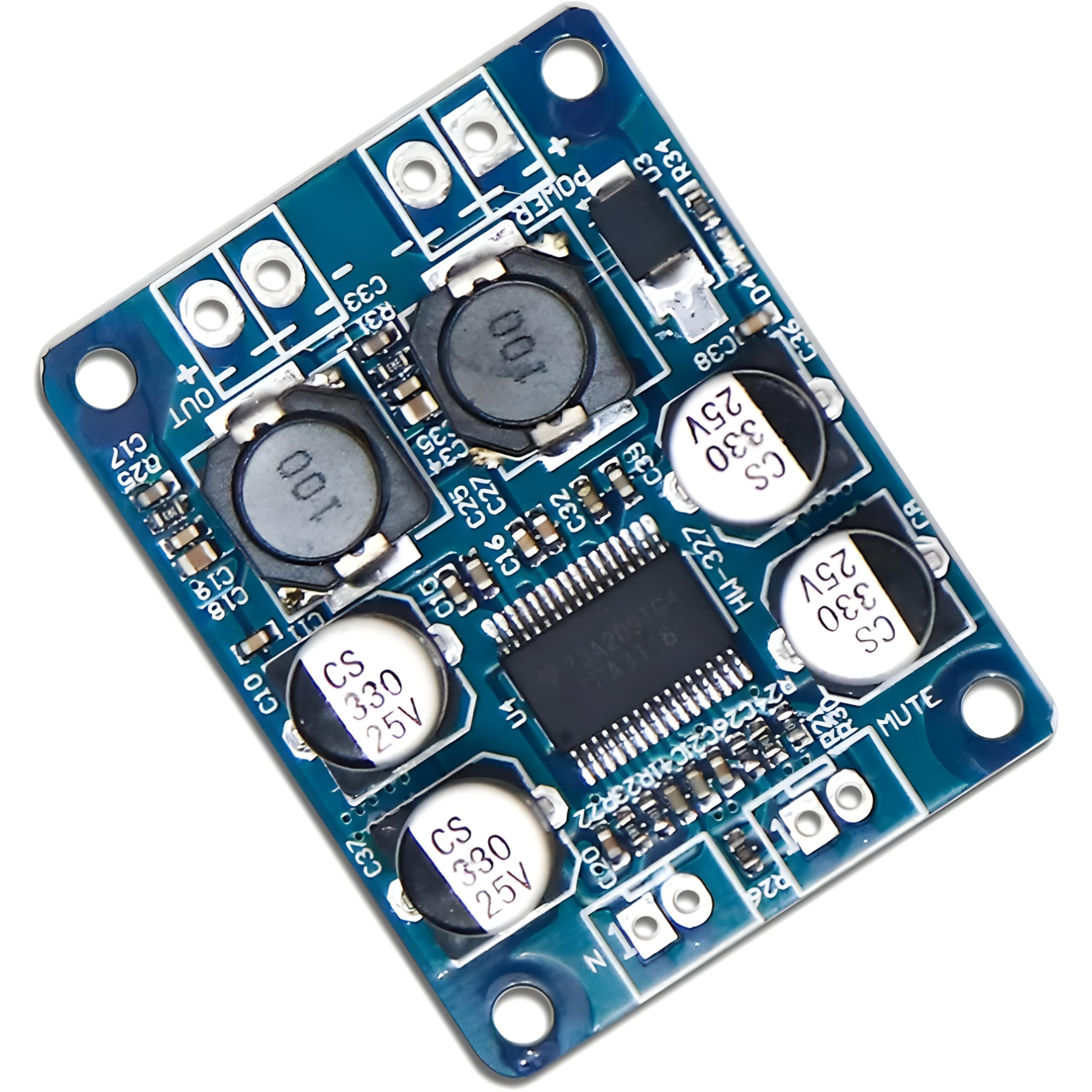

Hexonix TPA3118 Mono Digital Audio Amplifier 1 x 60W Class D Power Amplifier Module 12V/24V DC With 28-Pin Design
10 sold in last 24 hours
- 🔊 60W Mono Audio Output: Delivers up to 1 × 60W single-channel output under suitable power-supply, speaker-load and cooling conditions, making it suitable for compact mono speaker and DIY audio projects.
- ⚡ 12V / 24V DC Power Input: Designed for operation from 12V or 24V DC power supplies, providing flexible compatibility with different low-voltage audio system configurations.
- 🎵 TPA3118 Class-D Amplifier: Built around the TPA3118 digital audio amplifier platform, providing efficient Class-D amplification with reduced power loss and good power density.
- 🔈 Single-Channel Mono Design: Features a dedicated 1-channel mono output, suitable for single-speaker systems, mono sound projects, custom amplifier builds and embedded audio applications.
- 🔌 Compatible Speaker Operation: Designed for compatible passive speakers, with actual output power depending on speaker impedance, supply voltage, available current and thermal conditions.
- 🌡️ High-Efficiency Class-D Operation: Efficient switching amplification helps reduce unnecessary heat generation compared with conventional linear amplifier circuits, while proper cooling is still recommended at higher output levels.
- 🧩 28-Pin Module Design: Features a compact 28-pin board configuration, making it convenient for integration into custom audio circuits, electronics prototypes and space-limited amplifier projects.

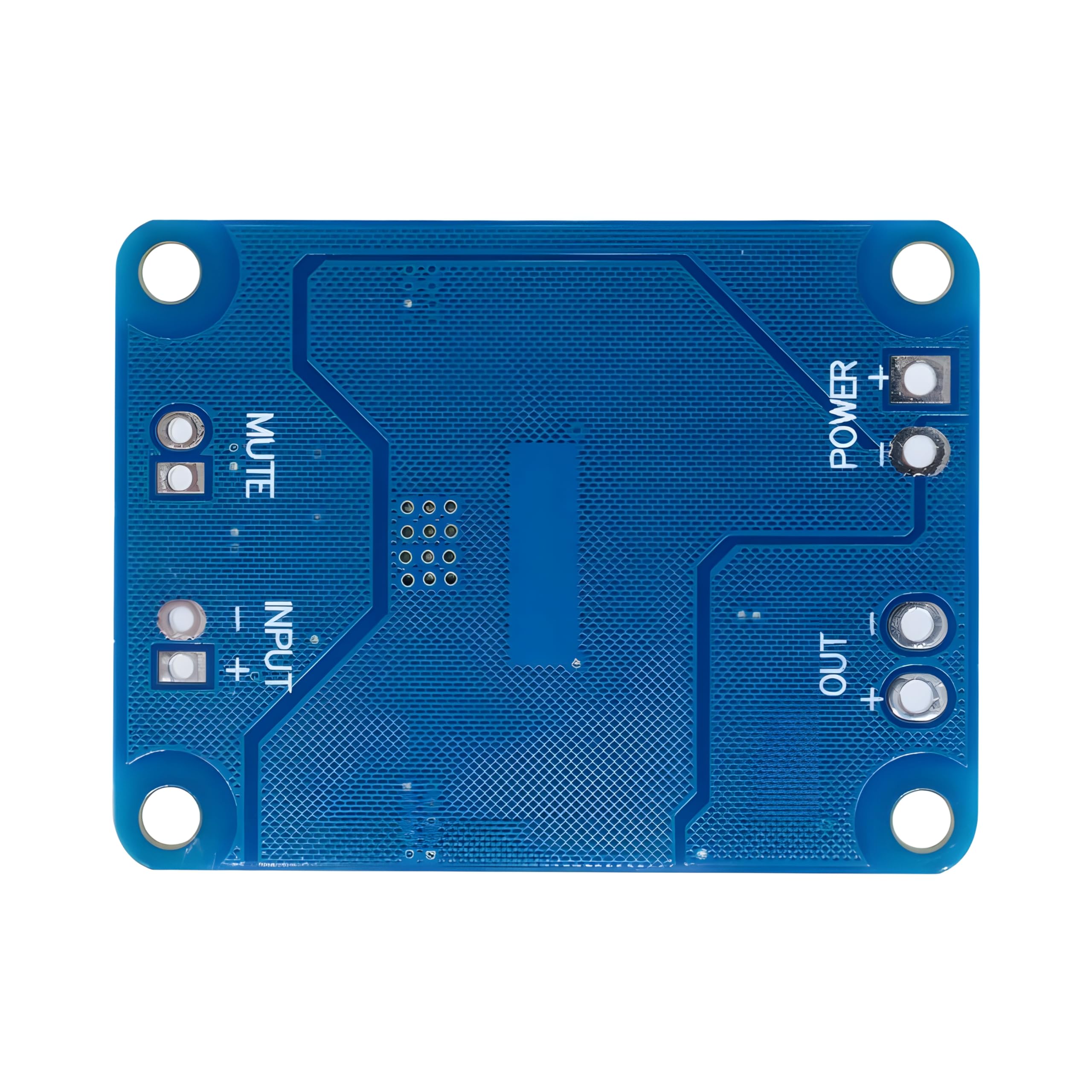

- 🔧 Simple Board-Level Connections: Provides straightforward connections for DC power input, audio signal input and speaker output, helping simplify wiring and project installation.
- 🛠️ Wide DIY Audio Applications: Suitable for mono speaker boxes, portable audio systems, custom sound equipment, electronics prototyping, embedded audio projects and DIY amplifier builds.
- 📦 Compact 60W Power Module: Combines TPA3118 Class-D amplification, 12V/24V DC operation, 1 × 60W mono output and a compact 28-pin design in one practical audio amplifier module.
Tags |
Estimated shipping
Select a product to estimate shipping.The Hexonix TPA3118 Mono Digital Audio Amplifier module is a compact and efficient solution for building custom mono audio systems. Designed for DIY enthusiasts and audio projects, this amplifier delivers a substantial 60W of power from a single channel.
Key Highlights
- High Power Output: Provides up to 60W of mono audio output under suitable operating conditions.
- Flexible Power Options: Operates on either 12V or 24V DC power supplies, offering versatility in your audio setup.
- Efficient Amplification: Utilizes the TPA3118 Class-D amplifier platform for reduced power loss and good power density.
- Mono Design: Specifically designed for single-speaker systems and mono audio applications.
- Compact Size: With dimensions of 47 x 35 x 12 millimeters, it’s easy to integrate into a variety of projects.
Useful Facts
- Dimensions: 47 x 35 x 12 Millimeters
- Voltage: 24 Volts (operates on 12V or 24V)
- Channels: 1 (Mono)
- Output Power: 60 Watts
- Certifications: CE, FCC, RoHS
Good Fit For
- DIY audio projects and custom speaker builds
- Compact mono speaker systems
- Embedded audio applications
- Experimentation with Class-D amplifier technology
Product details
| Main Specification | |
|---|---|
| Spezifikation erfüllt | RoHS or FCC or CE |
| Hersteller | Maxwell Healthcares, [email protected] |
| Stückzahl | 1.00 Uhr |
| Abmessungen L x W x H | 47 x 35 x 12 Millimeters |
| Marke | Gattungsbezeichnung |
| UPC | 629782276320 |
| Anzahl der Positionen | 1 |
| Eingeschlossene Bestandteile | TPA3118 Mono Digital Audio Amplifier |
| Spannung | 24 Volt |
| Montagetyp | Oberflächenmontage |
| Positionsgewicht | 20 Gramm |
| Product information | |
| Anzahl der Kanäle | 1 |
| Anzahl der Packungen | 1 |
| Technical Details | |
| Materialtyp | Aluminum – often used in heat sinks for cooling the amplifier. or Copper – used for the circuit traces on the PCB. or PCB (Printed Circuit Board) – usually made from FR4 (a composite material made of fiberglass and epoxy resin). or Plastic – used for components like capacitors or the casing or Silicon – used for the integrated circuits (ICs) and transistors on the module. |
| Teilenummer | TPA3118-1P |
| Ursprungsland | Indien |
| Item details | |
| Modellnummer | TPA3118-1P |
| Name des Typs | Amplifier |
| Measurements | |
| Positionsmaße | 47 x 35 x 12 Millimeters |
| Others | |
| Kontaktinformationen Packer | Indien or Jaipur or Rajasthan or Maxwell Healthcares |
| Kontaktdaten des Einführers | Circuitloop Technologies LLP or Phone: 0141-4946677 |
| Produkttyp | Amplifier |
| Kontaktangaben des Herstellers | [email protected] |
| Maximale Versorgungsspannung | 24 volts |
| Maximale Ausgangsleistung | 60 watts |
| Ausgangsleistung | 60 Watts |
| Mindestversorgungsspannung | 8 Volts |
